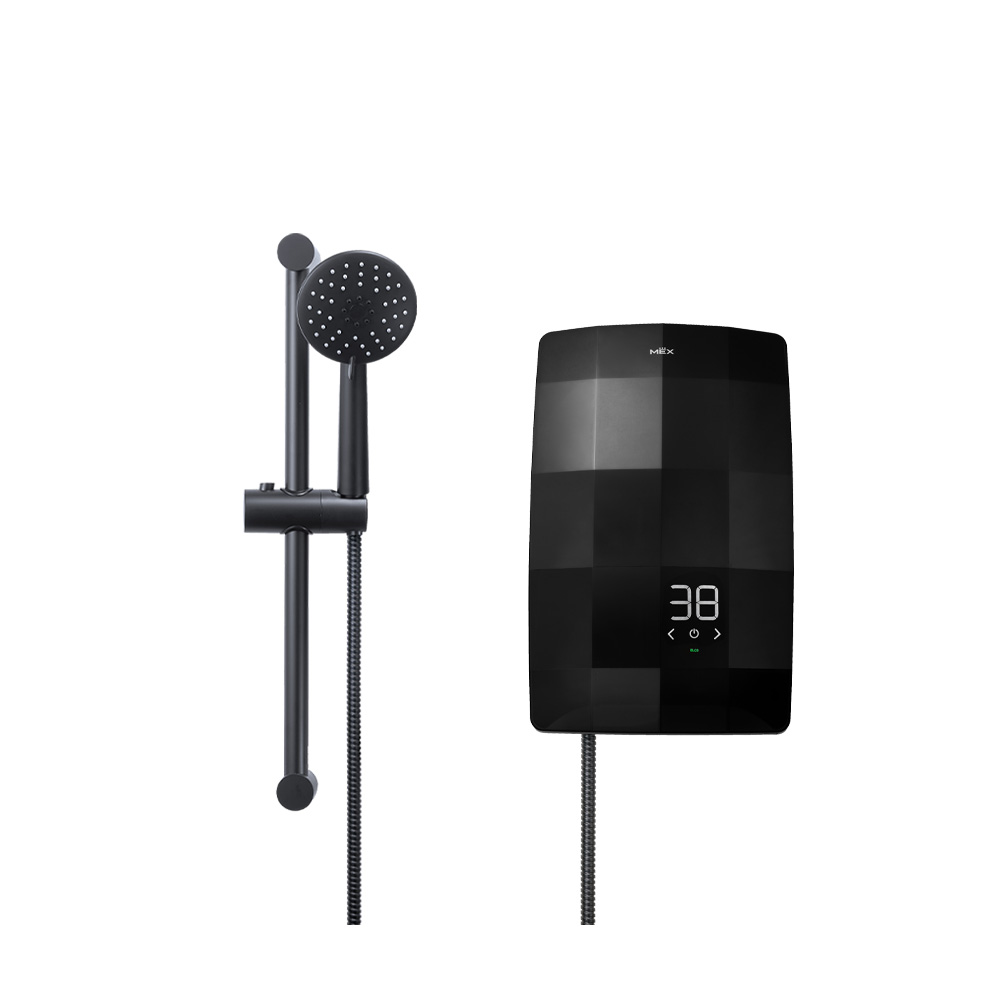

MEX INSTANT WATER HEATER 5100W : MOD.CUBE 5E (TI)

MEX

CUBE 5E (TI)

฿6,490.- ~~฿8,500~~

In stock

฿6,490.- ~~฿8,500~~

In stock

PRODUCT FEATURES
- Instant water heater, rated power 5,100 W
- Housing made of ABS plastic
- Large copper heating tank, 1.0 mm thickness
- Equipped with Hall Effect Sensor for precise water flow detection, supports low water pressure operation
- Thermistor system for fast and accurate temperature anomaly detection
- ELCB safety system cuts off power within 0.1 seconds at leakage current of 15 mA
- Ground wire and electrical wiring detection system with audible alarm and flashing indicator in case of fault
- Built-in temperature control system
- Adjustable inlet water valve for flow rate control
- Water protection rating: IP25

TECHNICAL DATA
- Product Dimensions: Width 220 × Depth 92 × Height 290 mm
- Packaging Dimensions: Width 320 × Depth 150 × Height 650.5 mm
- Gross Weight: 3.5 kg
- Net Weight: 1.9 kg
- Power Rating: 5,100 W
- Voltage / Frequency / Current: 220–240 V, 50 Hz, 23.18 A
- Installation Type: Wall-mounted
- Recommended Circuit Breaker: 25 A or higher
- Power Cable Size: 3 × 4.0 sq.mm (THW)
- Water Pressure (Min–Max): 0.2 – 2.8 bar
- Water Flow Rate: 3.5 L/min
